Sep. 14, 2026

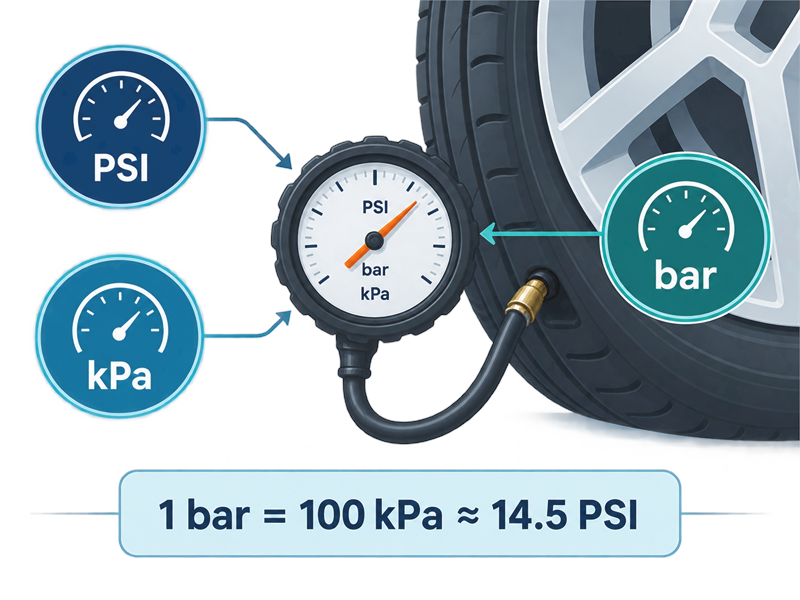

PSI, bar and kPa are three pressure units commonly shown on tire pressure gauges. They describe the same physical quantity, but they express the reading with different numerical scales. A pressure value can therefore look very different when a gauge changes from one unit to another, even though the measured pressure has not changed.
For importers, wholesalers and distributors working across several markets, these unit labels are part of the basic product information attached to each gauge. Understanding the relationship between PSI, bar and kPa makes specification sheets, displays, scales and packaging easier to read consistently.
PSI means pounds-force per square inch. It expresses pressure as a force measured in pounds-force acting over an area of one square inch. Tire pressure gauges designed for markets that commonly use inch-pound units often show PSI as a primary scale or display option.
On a mechanical tire pressure gauge, PSI may appear along a printed dial or sliding scale. On a digital tire pressure gauge, it may appear as a selectable display unit. The available units and display arrangement still depend on the individual model, so one product's unit set should not be treated as a feature of every gauge in the range.
The pascal, abbreviated Pa, is the SI unit of pressure. A kilopascal is 1,000 pascals, and its symbol is kPa. Using kilopascals keeps many everyday pressure values shorter and easier to display than writing the same value in pascals.
Bar is another metric pressure unit. It is not the SI pressure unit, but the National Institute of Standards and Technology lists it as accepted for use with the SI. One bar equals 100 kPa, or 100,000 Pa. On tire pressure gauges, bar is often presented as a compact decimal value, while kPa presents the same pressure as a larger whole-number or near-whole-number value.
The conversion relationship does not depend on the gauge type. NIST conversion factors give the following equivalents:
| Starting value | Equivalent pressure |
|---|---|
| 1 psi | 6.894757 kPa or approximately 0.06895 bar |
| 1 bar | 100 kPa or approximately 14.5038 psi |
| 1 kPa | 0.01 bar or approximately 0.14504 psi |
As an example derived from those factors, 35 psi is approximately 241.3 kPa or 2.41 bar. The three numbers represent the same pressure; only the unit and numerical scale have changed.
Small differences can appear when a converted value is rounded for a display, dial marking, manual or package. A value calculated to several decimal places may be shown with fewer digits on the product. That difference reflects display precision or rounding and does not create a new pressure unit.
Mechanical and digital tire pressure gauges present units in different ways. A dial gauge can carry more than one printed scale, allowing corresponding PSI and bar values to appear around the same face. A pencil-style gauge uses markings along its sliding indicator. These markings are fixed parts of the product's scale design.
A digital tire pressure gauge uses an electronic display and may provide more than one selectable unit. Depending on the model, the listed units can include PSI, bar, kPa or kgf/cm². The pressure range, resolution, available units and switching function remain model-specific facts.
The unit label is only one part of a complete gauge specification. Pressure range shows the span covered by the instrument, while resolution describes the smallest displayed increment. Stated accuracy is a separate field again. A display that shows more decimal places does not by itself establish greater measurement accuracy.
Clear unit information helps keep the product page, display, instruction material and packaging aligned. If a gauge face uses PSI and bar, its accompanying information should identify those same units accurately. If a digital model includes kPa, that function should remain connected to the correct product rather than being applied across the entire catalogue.
For this reason, pressure units and other technical details are best recorded at individual model level. Across a range of tire pressure gauge formats—including digital, mechanical, pencil, truck and extended-reach designs—the display method, scale and pressure range can vary. Each specification should therefore remain attached to the relevant model.
PSI, bar and kPa do not indicate three different kinds of tire pressure. They are three ways to express the same measurement. PSI uses pounds-force per square inch, kPa is based on the SI pascal, and bar has a direct relationship of 100 kPa per bar.
Once the unit label is read together with the numerical value, pressure information can be compared clearly across a dial, digital display, specification sheet or package. The important point is to keep each value attached to its stated unit and to the confirmed information for the individual tire pressure gauge.
Q: Are the unit symbols case-sensitive?
A: Yes. Write kilopascal as kPa, bar as bar, and pounds-force per square inch as psi or PSI. Consistent notation prevents ambiguity in displays and product documents.
Q: Can a tire pressure gauge also display kgf/cm²?
A: Some digital gauges include kgf/cm², but it differs from bar. Confirm this unit for the individual model rather than assuming it across a product range.
Q: Does switching the displayed unit recalibrate a digital gauge?
A: No. Unit switching changes the displayed expression of pressure. Calibration is separate and should only be described according to the model documentation.
Q: What should be checked if the dial, display and product sheet show different unit sets?
A: Verify the exact model. A mismatch may indicate different variants, outdated artwork or an incorrect specification entry that needs correction across related materials.
