Mar. 25, 2026

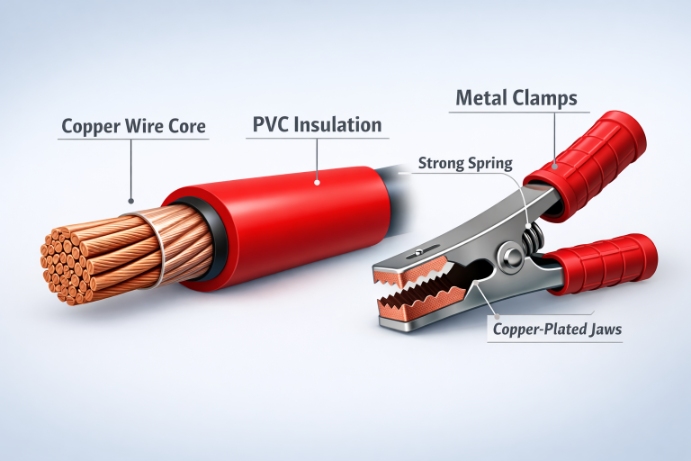

Summary: Jumper cables are primarily made of conductive metal cores (usually copper or copper-clad aluminum), protective insulation, and metal clamps. Their real-world performance depends on how these materials work together—especially the conductivity of the core, the thickness of the wire, and the quality of the connections. From a manufacturing perspective, differences in these elements can significantly affect reliability, durability, and starting performance.
At first glance, jumper cables seem like a straightforward product—just wires with clamps on both ends. But from a manufacturing perspective, their performance depends on a series of material and engineering decisions that are often invisible to the end user.
In real-world use, especially under high load or extreme conditions, these hidden differences become very noticeable. Understanding how jumper cables are made helps explain why some perform reliably for years, while others struggle in demanding situations.
The conductive core is responsible for transferring high current—often several hundred amps in a short burst. Engine starting typically requires 200–1000 amps depending on vehicle type , so material conductivity becomes critical.
Industry Comparison: Copper vs. CCA：
| Material | Key Characteristics | Typical Positioning |
|---|---|---|
| Pure Copper | High conductivity, stable performance | Professional and heavy-duty use |
| Copper-Clad Aluminum (CCA) | Lower conductivity, lighter weight | Cost-sensitive markets |
Aluminum conducts only about 60% as efficiently as copper, which means a cable made with CCA must compensate either with greater thickness or accept higher resistance. In practice, this is why two cables labeled with the same gauge can behave quite differently.
Supplier Insight:
In bulk manufacturing, the choice between copper and CCA is rarely just technical—it's strategic:
• Copper cables → preferred by workshops, fleets, and cold-climate markets
• CCA cables → dominate retail due to cost and lighter shipping weight
Beyond material, thickness plays a critical role. The gauge of the wire determines how much current it can carry without excessive resistance or heat buildup.
| Gauge (AWG) | Typical Use Case |
|---|---|
| 0–2 gauge | Trucks, diesel engines, heavy-duty use |
| 4 gauge | Standard passenger vehicles |
| 6–8 gauge | Light-duty or occasional use |
In theory, this classification is straightforward. In practice, however, performance depends on the combination of gauge and material. A thicker cable made with lower-conductivity material may still underperform compared to a thinner cable made with high-quality copper.
Another factor often overlooked is cable length. Longer cables increase resistance, which means the same gauge may not perform equally well across different lengths. This becomes especially relevant in roadside or workshop environments where flexibility in positioning vehicles is needed.
While the conductor carries the current, the insulation determines how the cable behaves in everyday conditions.
In warmer environments, standard PVC insulation is usually sufficient. But in colder climates, material flexibility becomes a key issue. Lower-grade insulation can stiffen significantly, making the cable difficult to handle or even prone to cracking.
From manufacturing experience, this is one of the most common sources of user complaints in export markets with colder weather. Two cables may have similar electrical performance, but their usability differs greatly depending on insulation quality.
Clamps are often treated as a secondary component, but in practice they play a critical role in ensuring effective current transfer.
A well-designed clamp should provide strong mechanical grip and maintain stable contact with the battery terminal. Poor contact increases resistance, which can reduce the effectiveness of the entire system—even if the cable itself is well constructed.
Material also matters here. Copper or copper-plated clamps offer better conductivity, while steel-based clamps are more durable but less efficient in transferring current. The balance between these properties often reflects the intended market segment of the product.
From the outside, jumper cables appear simple, but the production process involves several steps that directly influence quality.
The wire is first constructed by stranding multiple thin conductors together. This improves flexibility and reduces the risk of internal breakage. Insulation is then applied through extrusion, where temperature control and material consistency are critical to achieving uniform coverage.
The final stage involves attaching the clamps, typically through crimping or mechanical fastening. This connection point is one of the most sensitive areas in the entire product. If not properly secured, it can become a weak link under high current conditions.
Under ideal conditions, many jumper cables perform similarly. The differences become clear in more demanding scenarios—such as cold weather, larger engines, or longer cable lengths.
In these situations, higher resistance materials or weaker connections can lead to slower starts or even failure to start altogether. From a supplier’s perspective, these cases are often where product quality is truly tested, rather than in standard usage.
In the absence of detailed specifications, experienced buyers often rely on a few practical indicators. Weight, for example, can hint at the amount of conductive material used. Flexibility can reveal insulation quality, especially in lower temperatures. Clamp strength and finish also provide clues about overall construction standards.
These observations are not definitive on their own, but together they form a useful way to assess whether a product is built for reliability or simply designed to meet a price point.
Jumper cables are a product where internal structure matters far more than outward appearance. Material selection, wire design, insulation, and connection quality all contribute to how effectively the cable performs when it is needed most.
From a manufacturing standpoint, the key difference between products is not complexity, but execution. Small variations in materials and processes can lead to significant differences in real-world performance.
If you are comparing different types of wholesale jumper cables, understanding how these components work together provides a more reliable basis for evaluation than surface-level specifications alone.
What is the best material for jumper cables?
Pure copper is generally considered the best material because it offers higher electrical conductivity and more stable performance under high current. Copper-clad aluminum (CCA) is a more cost-effective alternative, but it has higher resistance and may not perform as well in demanding conditions.
Are thicker jumper cables always better?
Thicker cables (lower gauge numbers) can carry more current and reduce voltage loss, which improves starting performance. However, material quality also matters. A high-quality copper cable may outperform a thicker cable made from lower-conductivity materials.
Why do some jumper cables fail to start a car?
Failure can result from several factors, including insufficient wire thickness, low-conductivity materials, poor clamp contact, or excessive cable length. These factors increase resistance and reduce the amount of current reaching the battery.
Does cable length affect performance?
Yes. Longer cables increase electrical resistance, which can reduce the efficiency of power transfer. For longer cables, a thicker wire is usually required to maintain adequate performance.
How can you tell if a jumper cable is high quality?
Indicators of quality include heavier weight (suggesting more conductive material), good flexibility (especially in cold conditions), and strong, well-finished clamps that provide secure contact with battery terminals.
