A grease gun is a tool that stores grease, builds pressure and delivers the lubricant to a grease fitting. It is widely used for vehicle, machine and equipment maintenance because grease is too thick to flow through a simple oil spout.
Manual grease guns come in several forms, but they follow the same basic process: hold the grease, feed it into a pump, force it through an outlet and connect the outlet to the lubrication point.
A grease fitting gives the tool a defined connection point on a bearing, joint or other component. When the gun is operated, pressure moves grease through the fitting and into the lubrication point.
This makes a grease gun more than a container with a nozzle. Its reservoir, pump, outlet and coupler must work as one system. The correct grease type, amount and service interval still come from the equipment manufacturer's instructions.
Most manual grease guns contain the following functional parts:
| Part | Function |
|---|---|
| Barrel or container tube | Holds a compatible cartridge or bulk grease |
| Follower and spring | Keeps grease moving toward the pump head |
| Pump head | Draws in, pressurizes and directs the grease |
| Lever or pistol handle | Provides the manual pumping action |
| Hose or rigid extension | Carries grease toward the fitting |
| Coupler | Connects the outlet to a compatible grease fitting |
Some models also have an air-release valve, loader fitting or more than one discharge port. These features vary by model and should not be treated as standard on every grease gun.

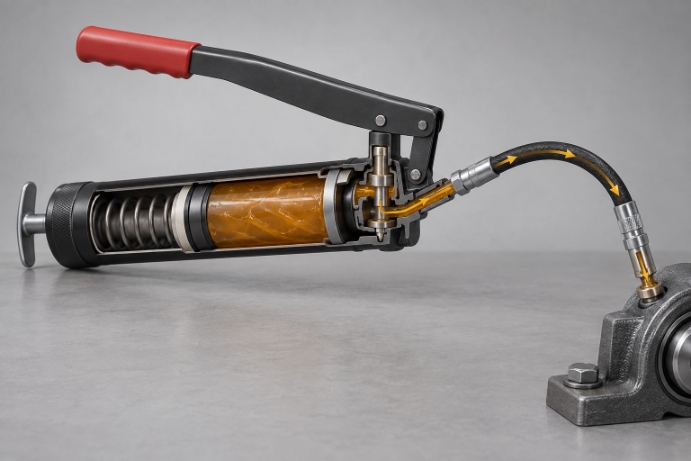

The basic operating cycle has six steps:
Grease is loaded into the barrel using a supported cartridge or bulk-filling method.
The follower assembly keeps grease near the inlet of the pump head.
Moving the lever or pistol handle drives a plunger inside the head.
The plunger draws grease into a small chamber and forces it toward the outlet.
The grease passes through a hose or rigid extension.
The coupler transfers it through the fitting and into the lubrication point.
The exact loading and operating steps depend on the model. Some SKF/Lincoln manual guns, for example, support cartridge loading, suction filling or filling through a loader pump. That does not mean every grease gun supports all three methods.
Cartridge loading and bulk filling are the most common terms used in grease-gun descriptions.
A cartridge keeps the grease in a replaceable package and must match the gun’s supported format. Bulk grease may be loaded by suction, through a filler pump or by another method stated in the manual.
The phrase “bulk fill” is not specific enough to describe the exact process. Supported loading methods and cartridge size are model-level details.
A lever grease gun uses a long handle operated against the body. A pistol-grip or one-hand model uses a squeezing action. Mini grease guns have a smaller body and may use smaller cartridges or reservoirs.
These names describe the operating layout, not the complete specification. Products in the same format can still differ in capacity, pressure, output, loading method, outlet and coupler.
For a closer look at these formats, see our OEM grease guns range.
Q: Does every grease gun use a cartridge?
A: No. Depending on the model, a grease gun may support cartridges, bulk filling or both.
Q: Why can a full grease gun stop dispensing?
A: Trapped air is one possible cause. Use the priming and air-bleeding procedure in the product manual.
Q: Is a flexible hose always better than a rigid extension?
A: No. Each provides a different access arrangement. The correct choice depends on the fitting location and the gun’s approved components.
Q: What does the coupler do?
A: It connects the grease gun outlet to a compatible grease fitting so grease can enter the lubrication point.
Q: Are all manual grease guns the same inside?
A: No. They share the same general storage-and-pumping principle, but their pumps, seals, valves and loading systems can differ.
